PMP Series | PMP 850/1000/1250/1600/2000/3000VDC

Polypropylene Film/Foil

PMP Series | PMP 850/1000/1250/1600/2000/3000VDC

Polypropylene Film/Foil

產品特徵

*串聯型產品

*電壓,電流耐受性高

*高Dv/Dt

產品特色&效能及應用領域

*適用於升壓迴路

*ＬＬＣ諧振迴路

*高頻大電流迴路

*大電流充放電迴路

產品說明

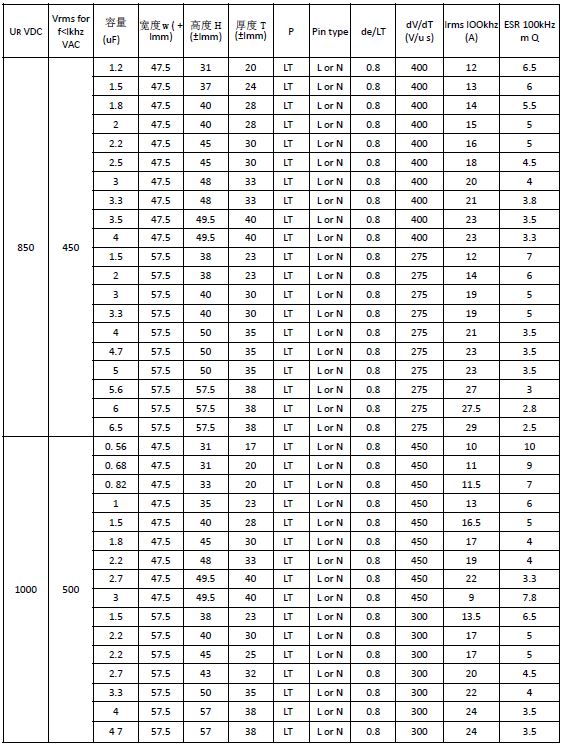

Capacitor Range :0.0068uF ~ 6.5µF

Rated Voltages :850/1000/1250/1600/2000/3000VDC

Tolerance : J(±5%),K(±10%), M(±20%)

Temperature range : -40°C ~ +100°C

Dissipation Factor(DF) :<=0.1% max. (at20˚C,1KHz)

規格說明
